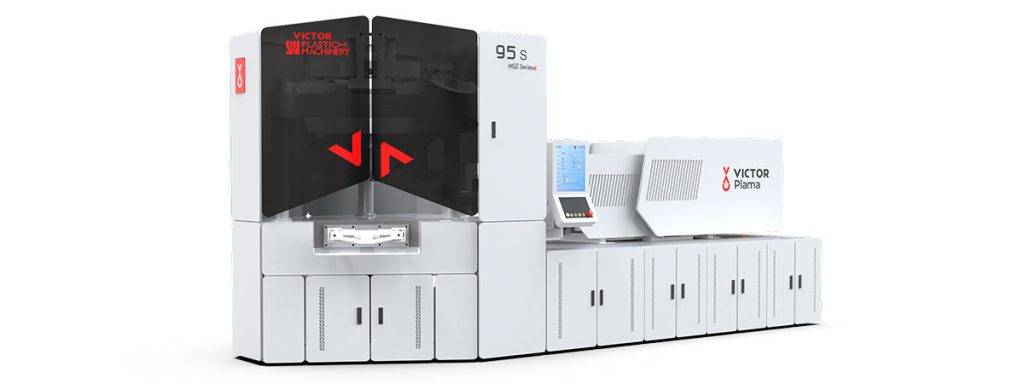

MSZ95S Injection Blow Molding Machine

Get Quotation Now

Technical Features

The single cylinder can open and close the injection mold and blow mold synchronously, making open and close mold faster and more efficient. The action of table up and down does not occupy the cycle during automatic production.
Servo double oil hydraulic drive system with accurate control, energy saving more than 25-45%.
The triangular beam structure has high rigidity and good stability.
Linear guide for barrel movement, low resistance, high precision.
Stripping plate overturn pneumatically, safe and clean.

Optional

Electric preplasticizing,synchronous plasticizing can be realized.
Linear guide for barrel movement, low resistance, high precision.
Electric stripping,senergy saving and clean.
Electric table rotation, high precision of rotation positioning.

Product Application

Pharmaceutical tablet containers
Pharmaceutical spring bottles
Covid-19 test containers
Pharmaceutical eye droppers

Advantage

Clamping parts

Special designed single crossbar dual-cylinder balance clamping system,for fast opening and closing mold while ensuring uniform distribution.

Rotation mechanism

Unique rotating mechanism design, and equipped with automatic lubrication system,ensure rotation precision be consistent.

Injection components

Alternative efficient plasticizing mixing screw, optimization of the injection unt,improve the injection stability and accuracy.

Hydraulic system

Equipped with electro-hydraulic servo system, the machine is running stable, low noise, high response and energy saving of 25% to 45%.

Barrel screw
Screw optimization design, clamp screw head assembly, with good plasticizing ability, wear resistance.

Processing principle

Injection Blow Molding Machine is a special designed machine with a rotarythree station index, after perform injection the perform will be sent to beblow station, then stripped for next processing like washing or filling neededby conveyor. It is suitable for PE, PP, PS, SAN, EVA, COC, PEEK, TPU PETG,PET etc material, bottles volume various from lml-I000ml.The l.B.M bottlehas a perfect neck finish and strict body thickness and weight, it is good forhigh quality packing like pharmaceutical, cosmetic, house holding,foodproducts packing industrial.

Parameter Table

Technical Parameters
Preform system Unit MSZ95S
Screw diameter mm 65
Screw L/D  L/D 23：1
Shot volume cm3 839
Injection weight(HDPE) g 795
Max.Screw speed rpm 10-235
Heating capacity KW 12.6
No.of heating zone Qty 3+N
Clamping system
Clamping force of preform KN 1008
Clamping force of blowing KN 221
Opening stroke of mold planten mm 155
Lifting H of rotary table mm 75
Max.Platen size(L×W) mm 900×480
Min.mold thickness(H) mm 280
Heating capacity of mould KW 10
Stripping system
Stripping stroke mm 260
Dry cycle sec 3
Driving system
Motor power KW 26+26
Hydraulic pressure Mpa 14
Product range
Suitable bottle range ml 5-800
MAX.bottle height mm ≤220
Max.Dia.of bottle mm ≤100
Other
Min.air pressure Mpa 1
Discharge rate of compressed air m3/mm ≥1
Water flowage m3/h 6
Total rated power with mold heating KW 75.6
Dimension(L×W×H) M 5.0×2.0×2.6
Net weinght ton 12
